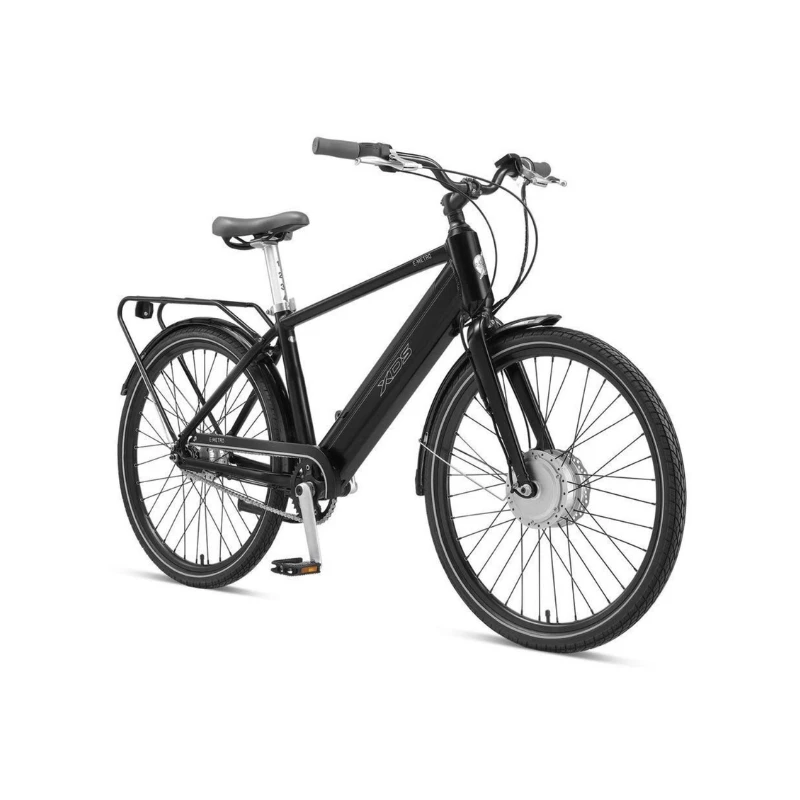

XDS E-Metro

The XDS E-Metro is the perfect balance for both a commuters bike and a fun leisurely ride. Be in control with the E-Metro’s LED display, giving you, the rider, maximum control over the level of assistance you need; whether you are navigating the city streets or the country hills. The E-Metro’s Phylion 36V/11.6Ah battery gives an approximate range of 60km and achieves a full charge within 4-5 hours.

36v Integrated Battery

A great electric bike needs a great battery to work.The E-Metro comes with a 36v Integrated Panasonic Battery Cell to keep you going and going. The Integrated battery offers a sleek and discrete look, and protects your battery every ride.



250W Hub Drive Motor

Go further with a 250w Bafang Electric Motor fitted on the rear hub. Amplify your pedaling power to pick up speed or power through hills with ease to make your cruise or commute effortless.

3 Speed Internal Hub Shifter

Using a quality Sunrace 3 Speed Internal Hub Shifter, you’ll be able to maintain cadence and the right gear ratio for any terrain.



Specifications

Frame: XDS 6061 Alloy with integrated battery

Fork: Alloy/Cromolly

Handlebar: Alloy, 680mm wide; H:130mm

Grip: Velo Closed end R=92mm, L=120mm

Stem: Alloy 28.8mm, 60mm

Seatpost: Alloy 35.2 x 500mm

Seat Clamp: Alloy with Quick Release

Saddle: Velo ED Comfort Black

Gear Shifter: Sunrace Twist Shifter

Rear Derailleur: N/A

Front Brake: Tektro Mechanical Disc with 160mm Rotor

Rear Brake: Sturmey Archer Drum Brake

Cassette: 26T Cog

Pedals: Comfort style

Cranks & Chainring: Alloy crank with 38T chain wheel

Chain: 1/2 x 1/8 x 102L

Bottom Bracket: Bafang Torque Sensor

Headset: Steel Alloy

Front Hub: Bafang motor

Rear Hub: Alloy Sunrace internal 3 speed with Drum brake

Mudguards: PVC Full cover

Spokes: Stainless Steel 14G with Brass Nipples

Tyre: 26 x 1.95 60TPI with reflective strip

Rim: Alloy DP 20 26 with eyelets

Bell: Alloy Flick

Kickstand: Alloy

Motor: Front hub drive G020 36V/250W

Battery: 36v/11.6AH Panasonic 2900 battery cells

Torque Sensor: Bafang BB

Display: DP E08.can, LED Display, 5 modes

Controller: Bafang

Charger: 36v input:100-240v

Sizing

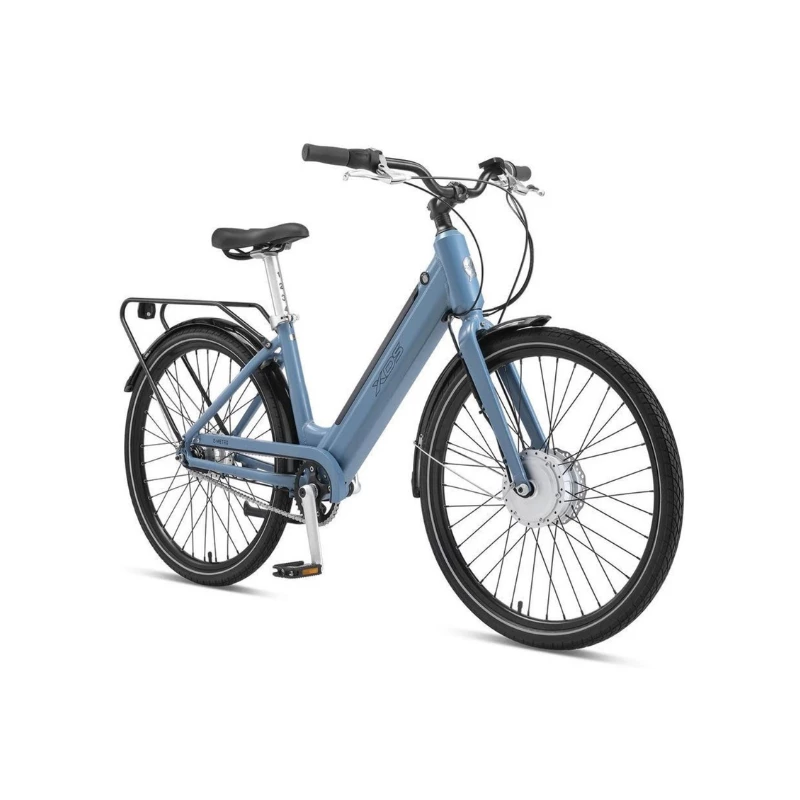

The XDS E-Metro Step-Through comes in two sizes: 15″ (Small) and 17″ (Medium)

The XDS E-Metro Step-Over comes in three sizes: 16″ (Small), 18″ (Medium), 20″ (Large).
