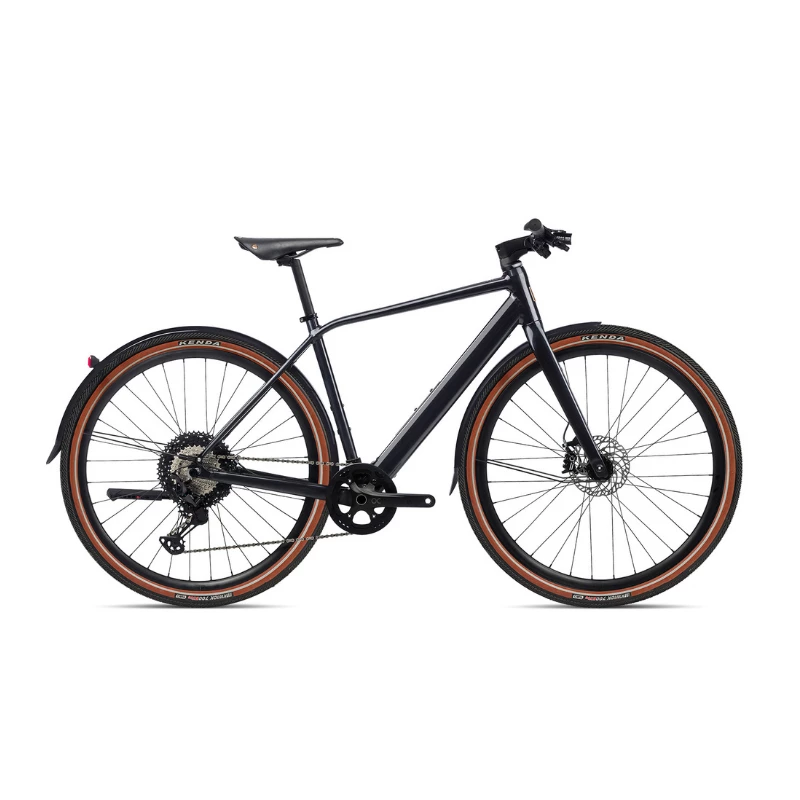

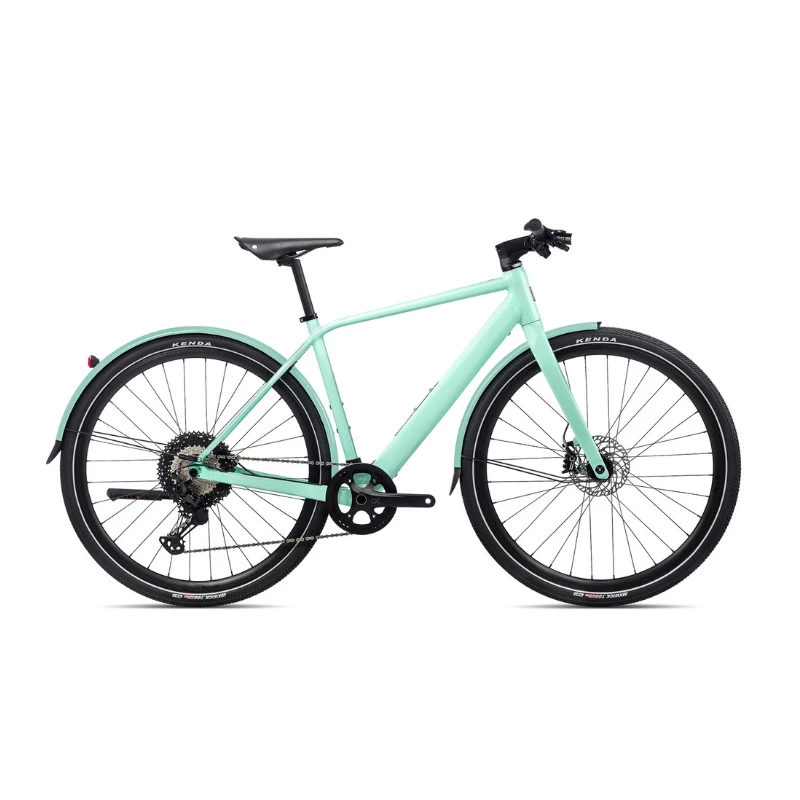

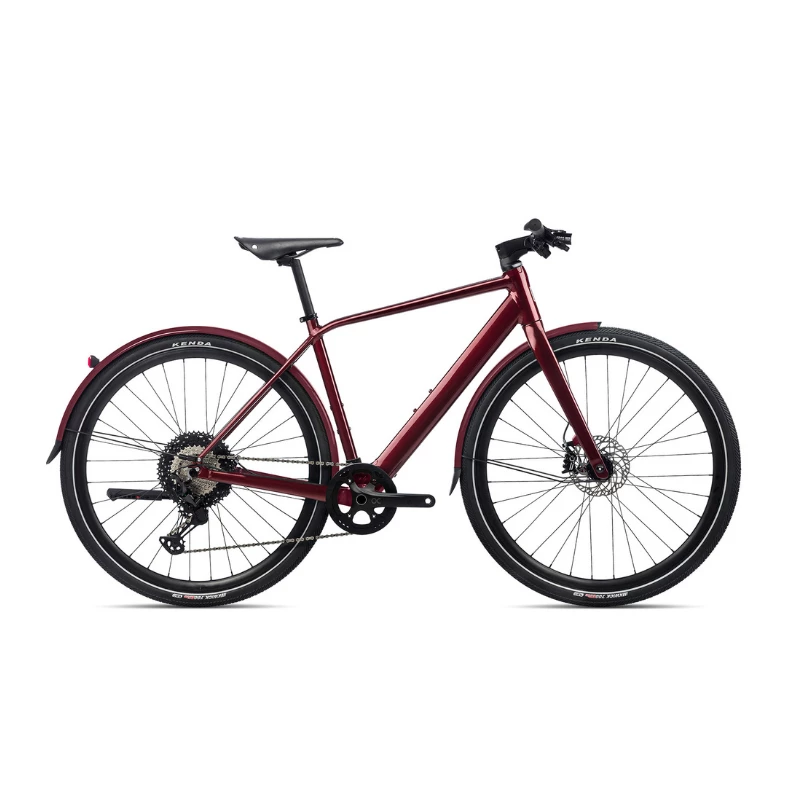

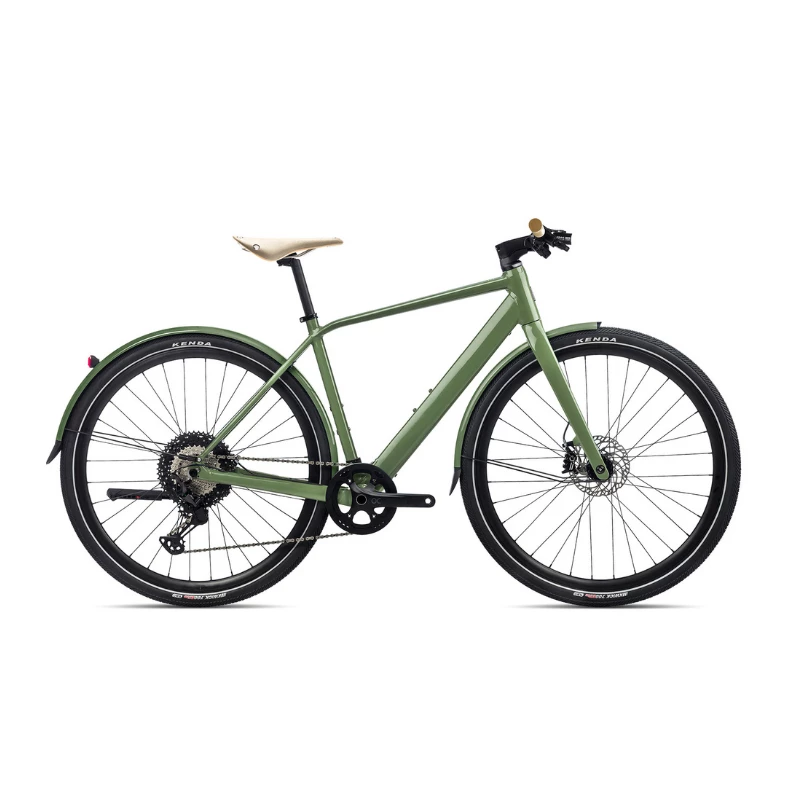

Orbea Vibe H10 Mud

In the spirit of urban function and easy use, Orbea has developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echos your sense of style without overshadowing it – a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces. Vibe is a bike that is light weight and enjoyable to ride – with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.

Orbea’s Enough Energy concept is a new way to ride and Vibe is a new kind of ebike – minimalist, integrated and sleek with no bulky components to reduce the riding experience, bringing you closer to the sensation that less “e” can ultimately deliver more “bike”.

The Orbea Urban Geometry concept anticipates how riders will use bikes in the city. A more upright position for better vision and comfort keeps you feeling secure. Balance is perfect and steering is responsive without feeling too fast. A low-bar frame option makes it easy to step through the frame for those with less mobility or restrictive clothing.

Connect your smartphone to the EBikeMotion app and enjoy indepth system information plus ride and training details. Add your smartphone mount to Vibe´s handlebars and navigate new streets with ease thanks to the full turn-by-turn GPS with fully offline maps.

Specifications

FRAME	Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135×9 QR, Flat Mount disc, 700×45 maximun tire, 1″ 1/2 semi head set, 41×86,5 Pressfit BB, carrier and fenders compatible
FORK	Orbea Vibe carbon fork, full carbon, 1-1/5, 700×45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
CRANKSET	OC 42t, w/Chainguard
HEADSET	Acros Alloy 1-1/2″ Internal Cable Routing
HANDLEBAR	Alloy 31.8mm 12mm Rise 700mm
STEM	OC1 31.8mm interface -6º
SHIFTERS	Shimano Deore M6100
BRAKES	Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
CASSETTE	Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
REAR DERAILLEUR	Shimano XT M8100 SGS Shadow Plus
CHAIN	KMC X12
WHEELS	Ready GR
TYRES	Kenda K1052 700x45C Reflective type TLR
PEDALS	VP-537 Black
SEATPOST	Alloy 27.2 Offset 20
SADDLE	Brooks Cambium C19 275×184
MUDGUARD	CURANA Apollo 55mm
FRONT POSITION LIGHT	Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
FRONT LIGHT	Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens
REAR LIGHT	Lezyne FENDER STVZO
QUICK STAND	Ursus Mooi R90 rear alloy adjustable
MOTOR	Ebikemotion X35 Plus 25kmh
BATTERY	Ebikemotion 36V/6.9A 248Wh ANT+
GRIPS	Brooks Comfort Cambium 130mm
CHARGER	Ebikemotion X35
REMOTE	Ebikemotion iWoc TRIO
FRONT WHEEL AXLE	Orbea Thru Axle 12x100mm M12x2 P1 Hollow
BELL	Knog OI Classic
