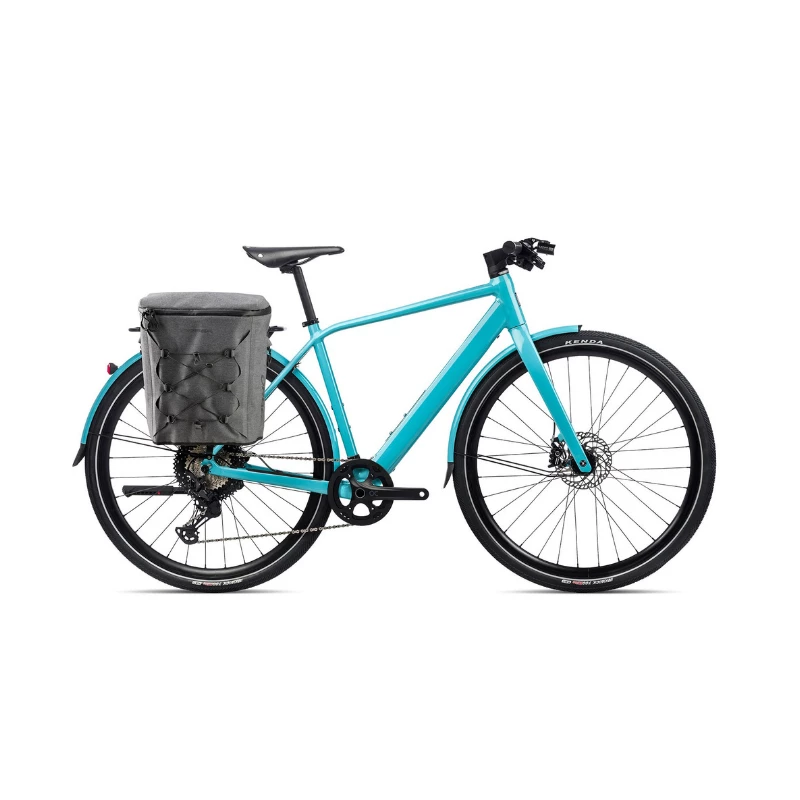

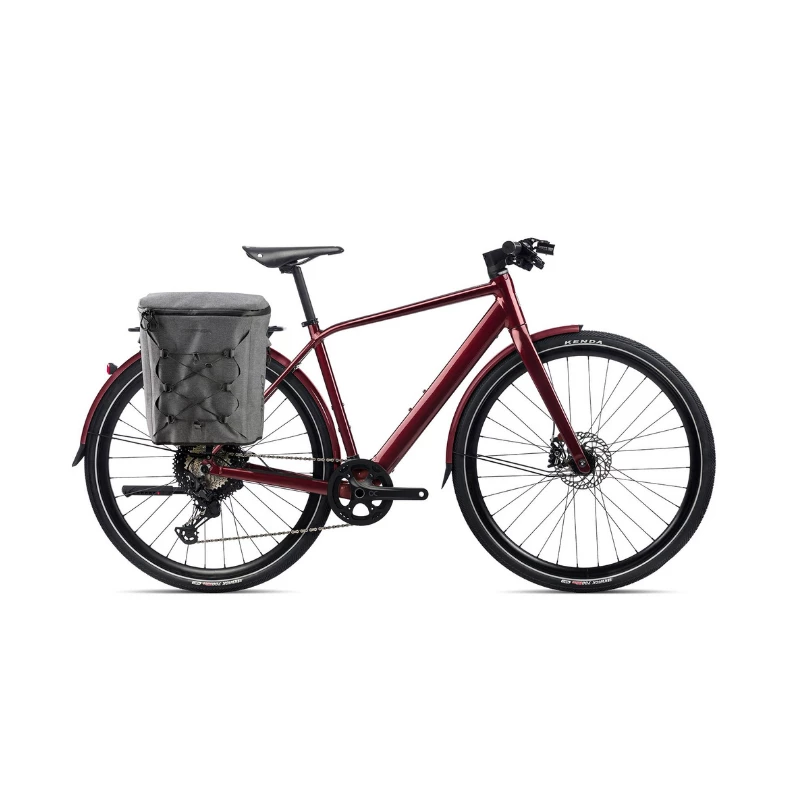

Orbea Vibe H10 EQ Electric Bikes

Vibe is a bike that is light weight and enjoyable to ride – with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.

Features

Compared to the Vibe H30, the H10 is fully equipped with accessories (including mudguards and rear rack) and premium brake and gear components. Other features:

• Magura hydraulic disc brakes
• 12 gears
• Neat internal cable routing and battery
• Smooth pedal assist and gear shifting sensor
• Attractive and discrete handlebar control switch
• Integrated front and rear lights

Specifications

Motor	Ebikemotion X35 Plus 25kmh
Battery	Ebikemotion 36V/6.9A 248Wh ANT+
Charger	Ebikemotion X35
Remote	Ebikemotion iWoc TRIO
Front Position Light	Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50
Front Light	Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens
Rear Light	Lezyne FENDER STVZO
Brakes	Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Crankset	OC 42t, w/Chainguard
Shifters	Shimano Deore M6100
Cassette	Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
Rear derailleur	Shimano XT M8100 SGS Shadow Plus
Chain	KMC X12
Handlebars	Alloy 31.8mm 12mm Rise 700mm
Stem	OC1 31.8mm interface -6º
Rear Carrier	Orbea Vibe rear luggage carrier (Max:15Kg)
Carrier accessories	OC, Carrier side bag, backpack convertible with inner computer bag. 15l, waterproof, reflective.
Mudguards	CURANA Apollo 55mm
Kickstand	Ursus Mooi R90 rear alloy adjustable
Frame	Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135×9 QR, Flat Mount disc, 700×45 maximun tire, 1″ 1/2 semi head set, 41×86,5 Pressfit BB, carrier and fenders compatible
Wheels	Ready GR
Front Wheel Axle	Orbea Thru Axle 12x100mm M12x2 P1 Hollow
Tyres	Kenda K1052 700x45C Reflective type TLR
Suspension	No
Fork	Orbea Vibe carbon fork, full carbon, 1-1/5, 700×45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
Saddle	Brooks Cambium C15 283×140
Seatpost	Alloy 27.2 Offset 20
Grips	Brooks Comfort Cambium 130mm
Bell	Knog OI Classic
