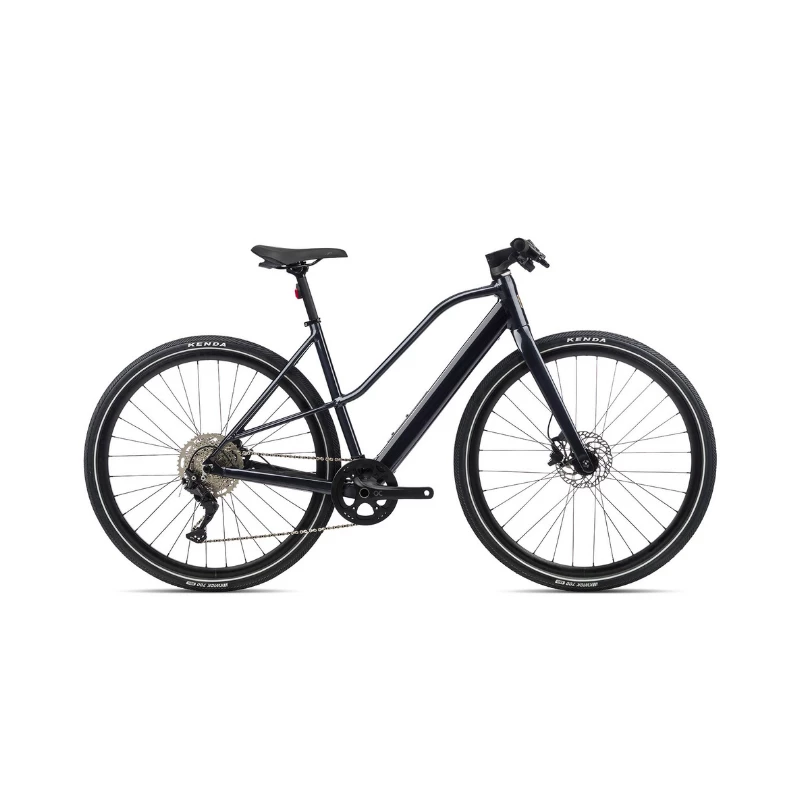

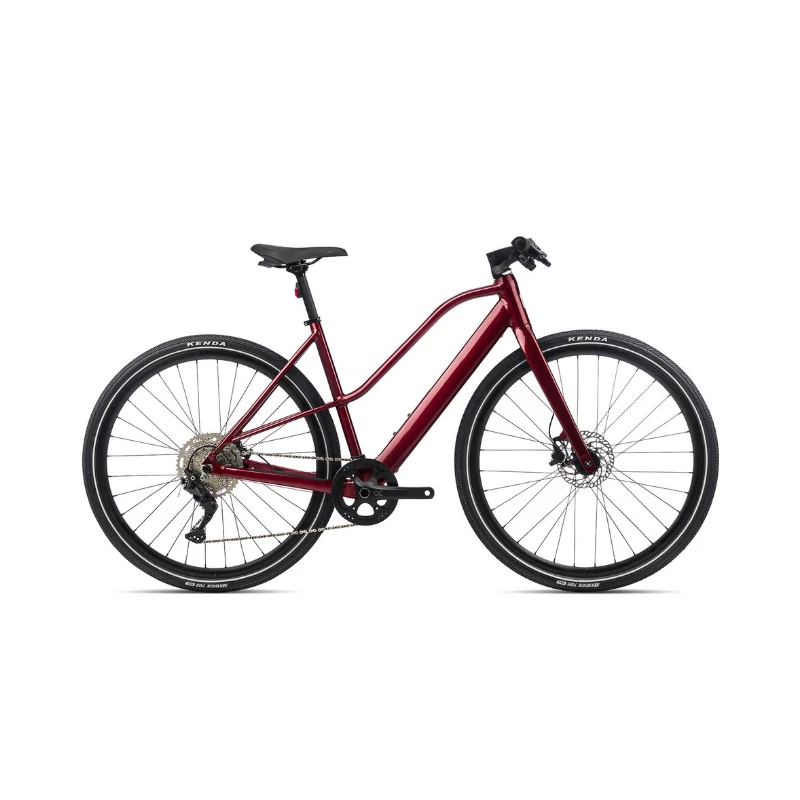

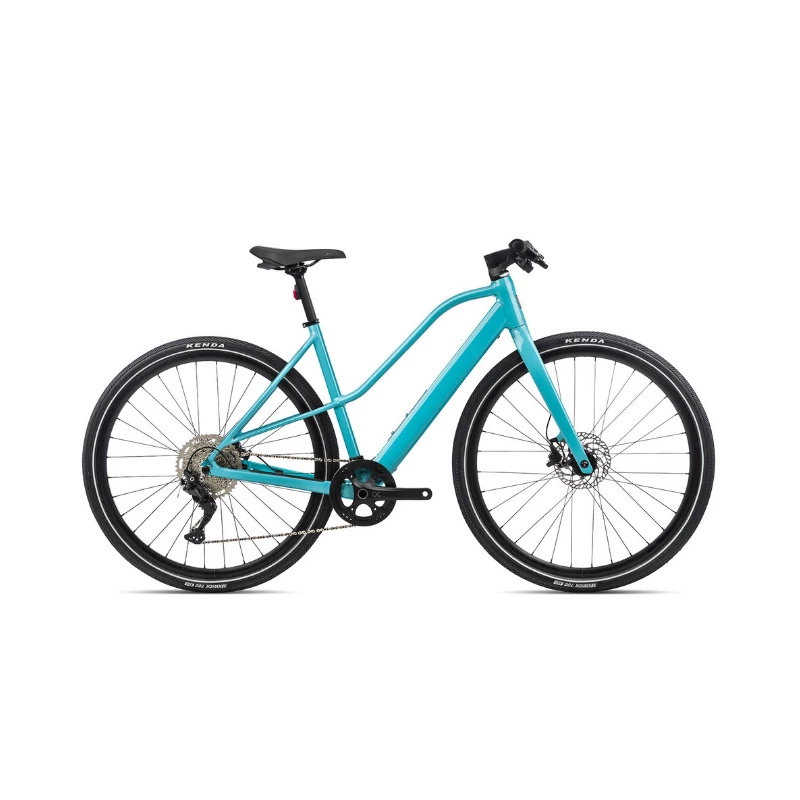

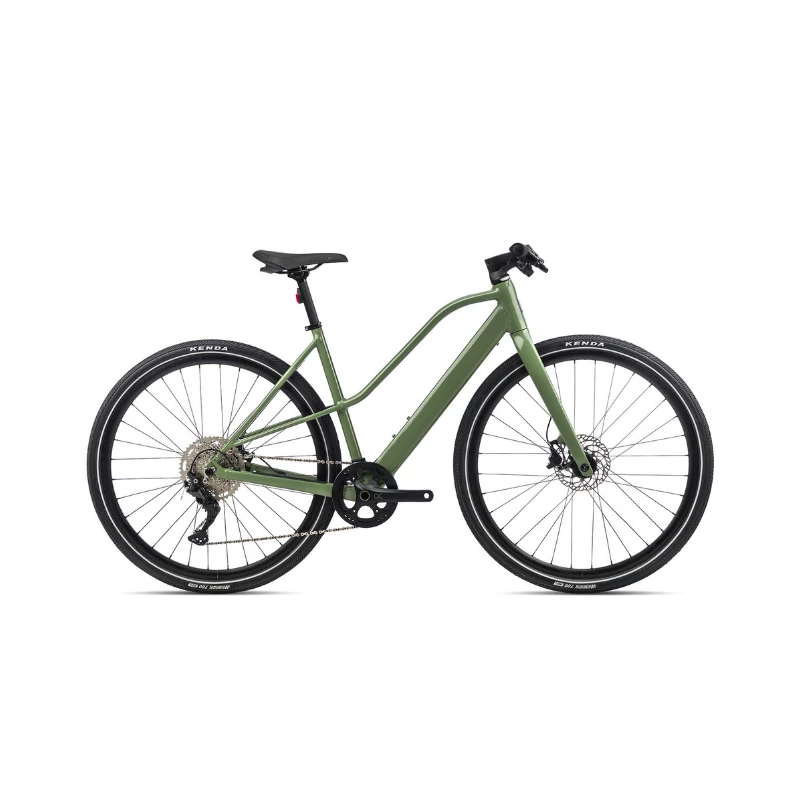

Electric Bikes Orbea Vibe Mid H30

Vibe is a bike that is light weight and enjoyable to ride – with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city. The Mid model frame has a lower top-tube to help you get your leg over.

Features

• Magura hydraulic disc brakes
• 10 gears
• Neat internal cable routing and battery
• Smooth pedal assist and gear shifting sensor
• Attractive and discrete handlebar control switch
• Integrated front and rear lights

Specifications

• FRAME Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135×9 QR, Flat Mount disc, 700×45 maximun tire, 1″ 1/2 semi head set, 41×86,5 Pressfit BB, carrier and fenders compatible
• FORK Orbea Vibe carbon fork, full carbon, 1-1/5, 700×45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
• CRANKSET OC 42t, w/Chainguard
• HEADSET Acros Alloy 1-1/2″ Internal Cable Routing
• HANDLEBAR Alloy 31.8mm 12mm Rise 700mm
• STEM OC1 31.8mm interface -6º
• SHIFTERS Shimano Deore M4100
• BRAKES Magura MT30 Hydraulic Disc Easy Route Connection
• CASSETTE Shimano CS-M4100 11-46t 10-Speed
• REAR DERAILLEUR Shimano Deore M5120 SGS Shadow Plus
• CHAIN KMC X10
• WHEELS Ready GR
• TYRES Kenda K1052 700x45C Reflective type+puncture protection
• SEATPOST OC 27.2 Offset 0, for integrated light
• SADDLE Selle Royal Lift 1215 URN 278x145mm
• FRONT POSITION LIGHT Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
• FRONT LIGHT
  Consult other components
• REAR LIGHT Lezyne FENDER STVZO seatpost mounting 11 lumens
• MOTOR Ebikemotion X35 Plus 25kmh
• BATTERY Ebikemotion 36V/6.9A 248Wh ANT+
• RANGE EXTENDER
• CHARGER Ebikemotion X35
• REMOTE Ebikemotion iWoc TRIO
• FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Hollow
• VIBE SHEET MYO LITE
• BELL Knog OI Classic
