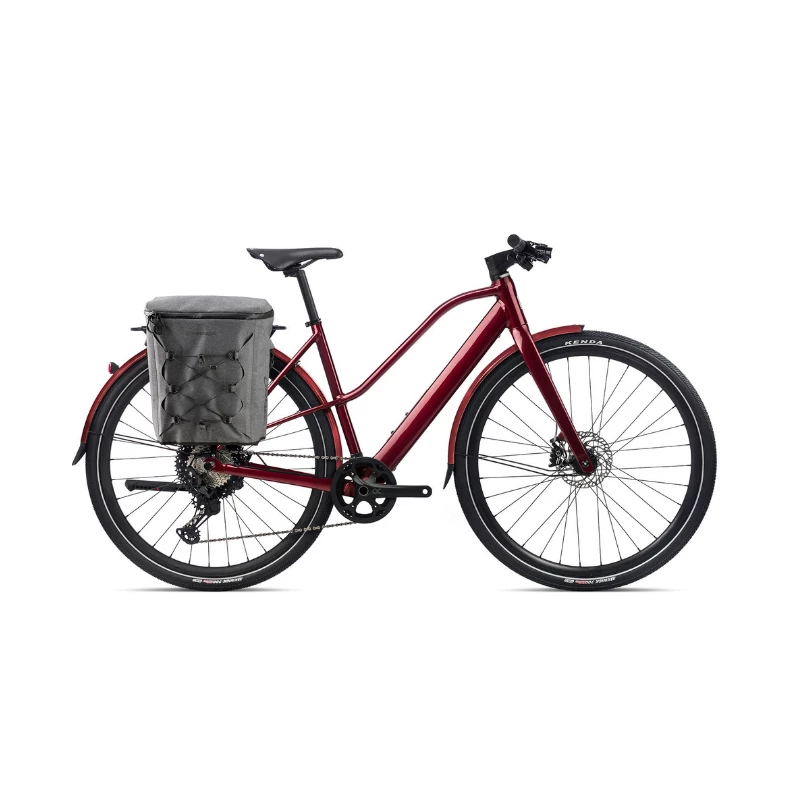

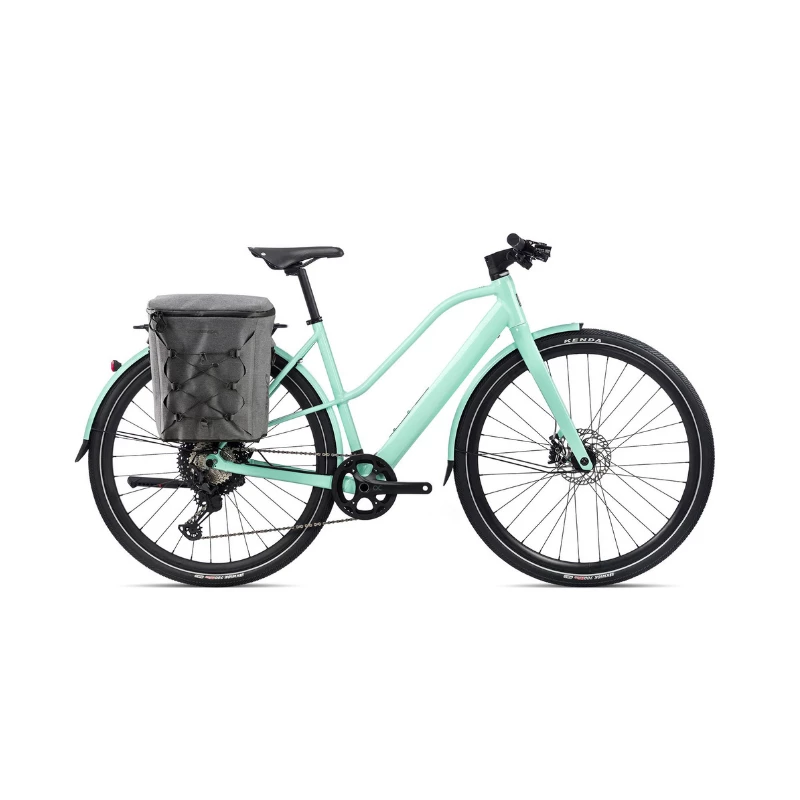

Vibe is a bike that is light weight and enjoyable to ride – with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city. The Mid model frame has a lower top-tube to help you get your leg over.
Features
Compared to the Vibe H30, the H10 is fully equipped with accessories (including mudguards and rear rack) and premium brake and gear components. Other features:
- Magura hydraulic disc brakes
- 12 gears
- Neat internal cable routing and battery
- Smooth pedal assist and gear shifting sensor
- Attractive and discrete handlebar control switch
- Integrated front and rear lights
Specifications
- FRAME Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135×9 QR, Flat Mount disc, 700×45 maximun tire, 1″ 1/2 semi head set, 41×86,5 Pressfit BB, carrier and fenders compatible
- FORKÂ Orbea Vibe carbon fork, full carbon, 1-1/5, 700×45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
- CRANKSETÂ OC 42t, w/Chainguard
- HEADSETÂ
- HANDLEBARÂ Alloy 31.8mm 12mm Rise 700mm
- STEM OC1 31.8mm interface -6º
- SHIFTERSÂ Shimano Deore M6100
- BRAKESÂ Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
- CASSETTEÂ Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike
- REAR DERAILLEURÂ Shimano XT M8100 SGS Shadow Plus
- CHAINÂ KMC X12
- WHEELSÂ Ready GR
- TYRESÂ Kenda K1052 700x45C Reflective type TLR
- SEATPOSTÂ Alloy 27.2 Offset 20
- SADDLEÂ Brooks Cambium C15 283×140
- REAR CARRIERÂ Orbea Vibe rear luggage carrier (Max:15Kg)
- CARRIER ACCESSORIESÂ OC, Carrier side bag, backpack convertible with inner computer bag. 15l, waterproof, reflective.
- MUDGUARDÂ CURANA Apollo 55mm
- FRONT POSITION LIGHTÂ Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
- FRONT LIGHTÂ Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens
- REAR LIGHTÂ Lezyne FENDER STVZO
- QUICK STANDÂ Ursus Mooi R90 rear alloy adjustable
- MOTORÂ Ebikemotion X35 Plus 25kmh
- BATTERYÂ Ebikemotion 36V/6.9A 248Wh ANT+
- RANGE EXTENDERÂ
- GRIPSÂ Brooks Comfort Cambium 130mm
- CHARGERÂ Ebikemotion X35
- REMOTEÂ Ebikemotion iWoc TRIO
- FRONT WHEEL AXLEÂ Orbea Thru Axle 12x100mm M12x2 P1 Hollow
- VIBE SHEET MYO LITEÂ
- BELLÂ Knog OI Classic
