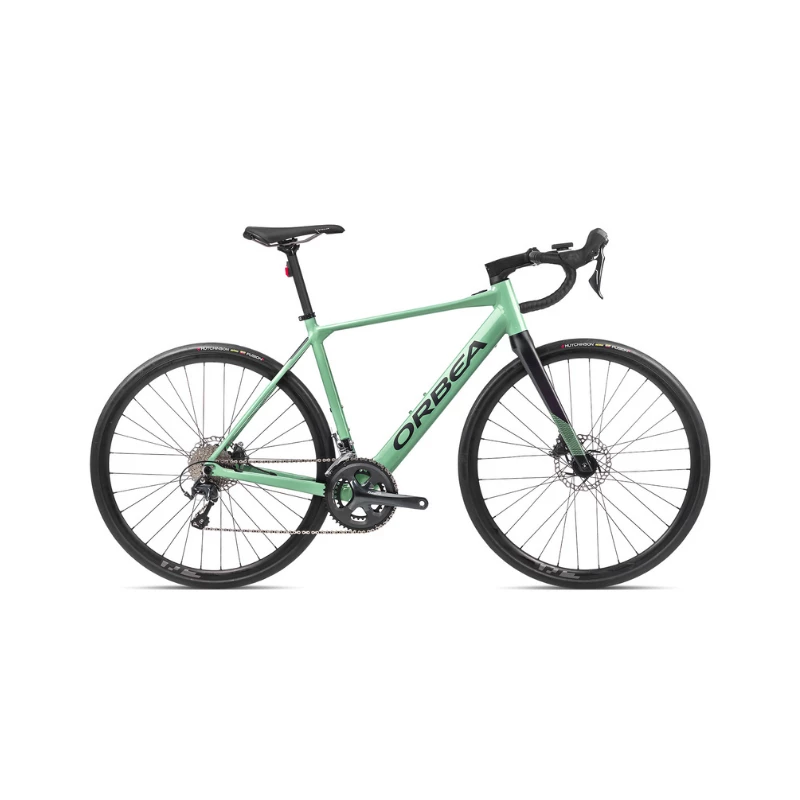

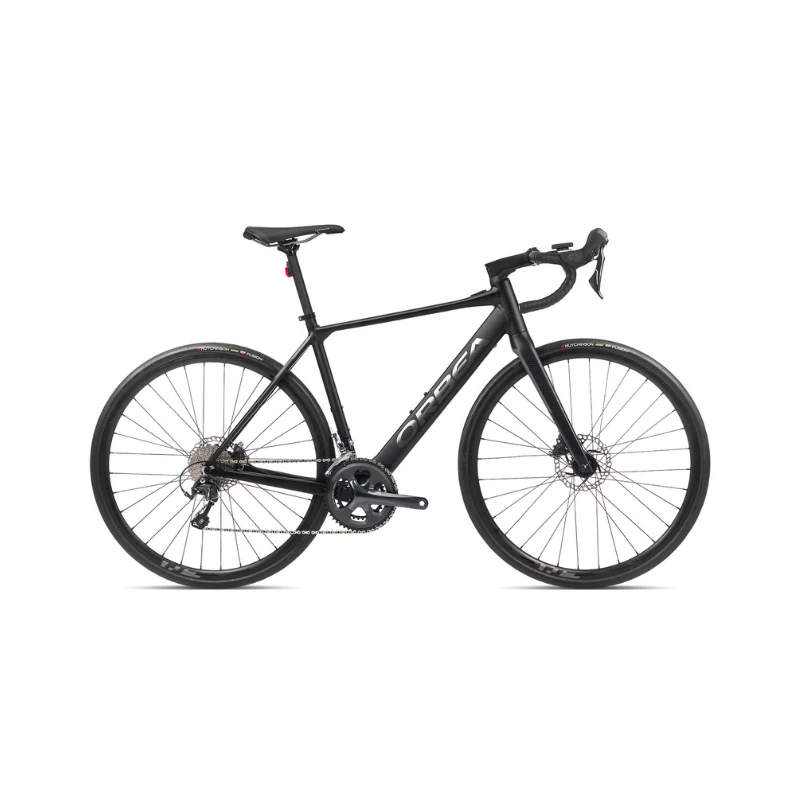

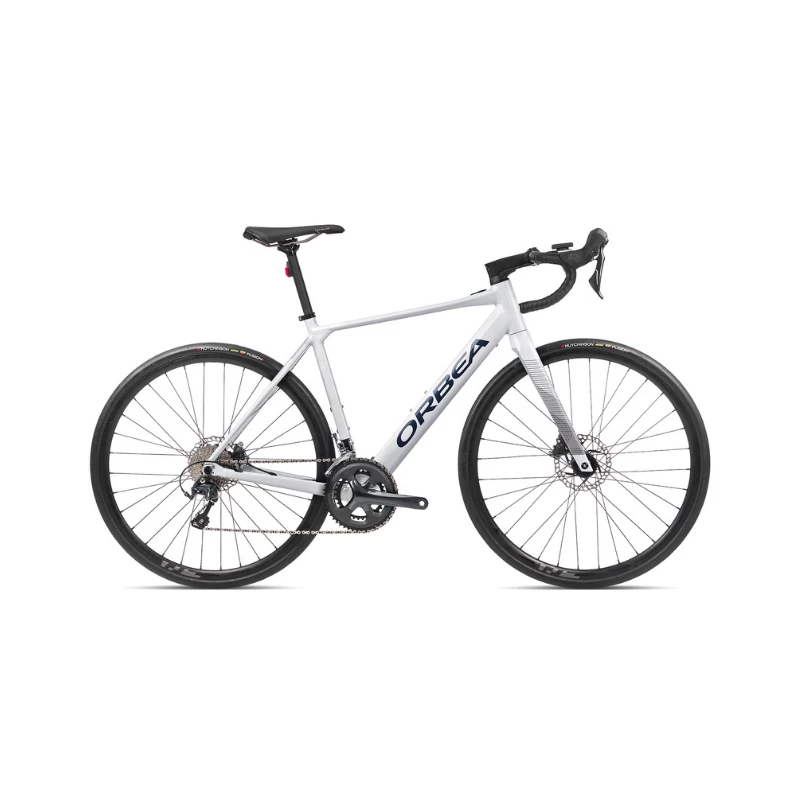

Electric Bikes Orbea Gain D40

Orbea designed Gain to improve your rides, not dominate them. The Enough Power concept results in an exceptionally lightweight, sportive and rideable bike – a machine that heeds the call of the open road.

Specifications

• FRAME Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135×9 QR, Flat Mount disc mount, 700×40 maximun tyre, 1″ 1/2 semiintegrated head set, 41×86,5 Pressfit botton bracket.
• FORK Gain Hydro carbon fork, full carbon, 1-1/8″ – 1.5″ tappered head tube compatible, 700×40 maximun tyre, flat mount disc mount, Thru axle 12x100mm
• CRANKSET Shimano Tiagra 4700 34x50t
• HEADSET Acros Alloy 1-1/2″ Internal Cable Routing
• HANDLEBAR OC1 Road, reach 80mm, drop 125mm
• STEM OC1 31.8mm interface -6º
• SHIFTERS Shimano Tiagra ST-4770
• BRAKES Shimano Tiagra 4770 Hydraulic Disc
• CASSETTE Shimano Tiagra HG-500 11-32t 10-Speed
• REAR DERAILLEUR Shimano Tiagra 4700 GS
• FRONT DERAILLEUR Shimano Tiagra 4700
• CHAIN KMC X10
• WHEELS Ready GR
• TYRES Hutchinson Fusion 5 Performance TLR 700×30
• SEATPOST OC 27.2 Offset 0, for integrated light
• SADDLE Selle Royal Asphalt GR
• FRONT LIGHT Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.
• REAR LIGHT Lezyne FENDER STVZO seatpost mounting 11 lumens
• MOTOR Ebikemotion X35 Plus 25kmh
• BATTERY Ebikemotion 36V/6.9A 248Wh ANT+
• RANGE EXTENDER
• HANDLEBAR PLUGS Orbea Anti-Slippery/Shock Proof
• DISPLAY OC monochrome ANT+ LEV
• CHARGER Ebikemotion X35
• REMOTE Ebikemotion iWoc ONE
• FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Hollow
