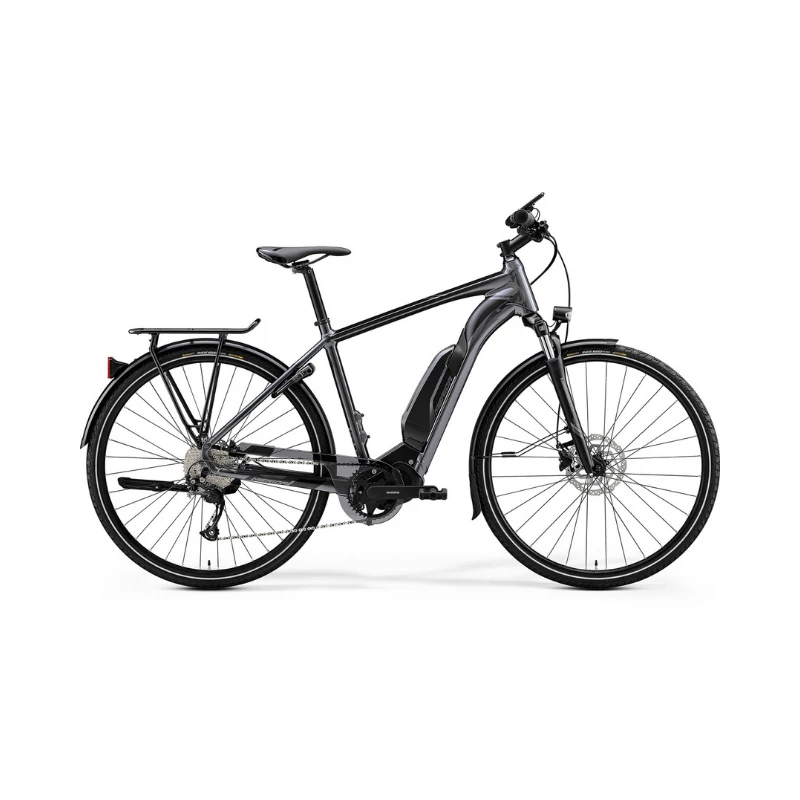

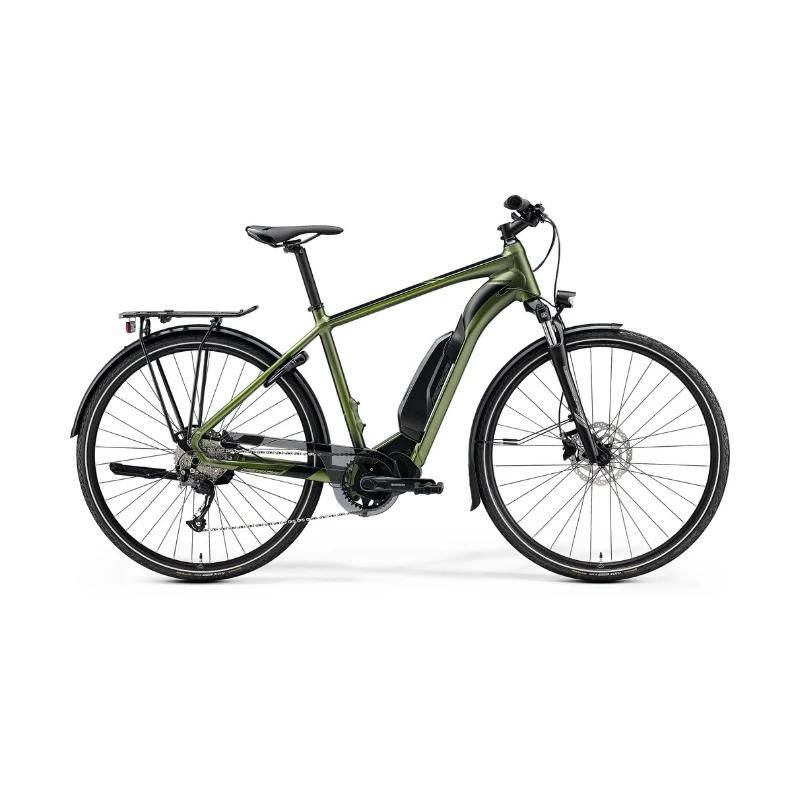

Electric Bikes Merida Espresso 300SE EQ 504

A quality frame with semi-integrated battery is paired to a smooth Shimano drive unit to deliver a city e-bike that gives you all the function you need without the high price tag.

You don’t need to spend a fortune to get a reliable city e-bike, something our eSPRESSO 300 EQ easily proves. With a strong and smooth Shimano E5000 drive unit paired to a high-quality aluminium frame with semi-integrated 504 Wh battery, it delivers reliable performance whether you’re on the way to work, returning from the shops or just checking out new parts of town. Thanks to equipment such as mudguards, lights, kickstand, lock and rack as standard, plus quality brakes, drivetrain and suspension, it’s ready to go from the moment you leave the shop.

The eSPRESSO range is the perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop. Choose between frames with internally mounted batteries of either 750 Wh, 630 Wh or 504 Wh capacity or a more economical, 504 Wh semi-integrated design. All use a range of powerful Shimano STEPS drive units, with the option of the sporty EP8 motor on some models. Low step-through frame options on all models help ease mounting and dismounting. Suspension forks offer improved control, while powerful hydraulic disc brakes give reliable and controllable stopping power in all weather conditions. The 700c wheels have wide 50 mm tyres for extra grip and comfort, plus reflective sidewalls strips improve rider safety in low light. Internally routed cables give a sleek look, while a 150 kg maximum system weight means plenty of carrying capacity.

Key features

• Smooth, refined Shimano E5000 drive unit
• Lightweight frame with internally mounted 504 Wh battery
• Smooth 9-speed Shimano drivetrain
• Fully equipped with guards, lights, lock, rack and kickstand
• Fast-rolling 700c wheels and comfortable, grippy 50 mm tyres

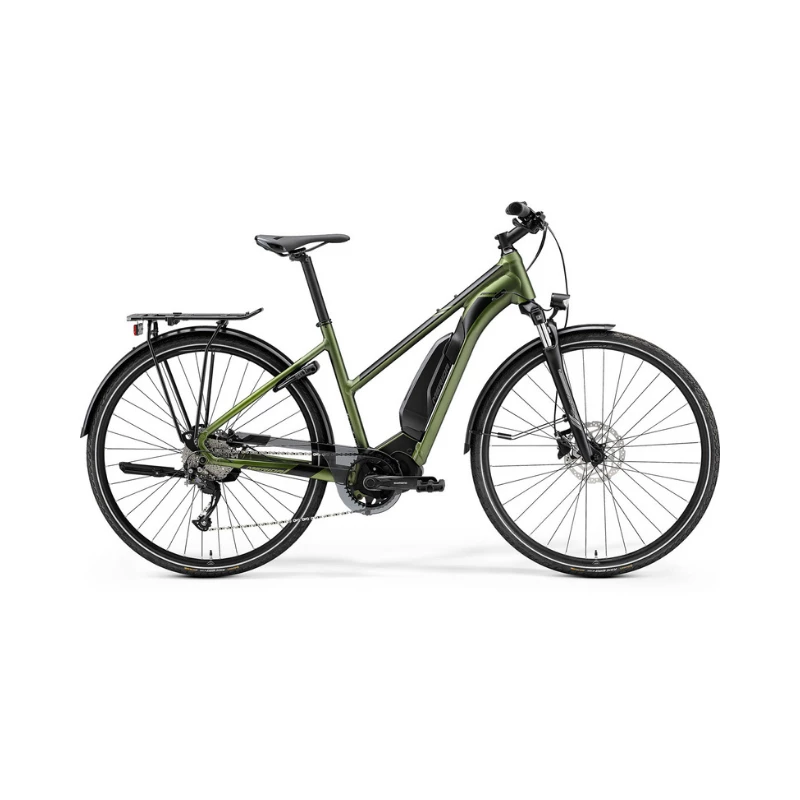

• Low step-through frame option available

Specifications

Frame Material	Alloy
Groupset Brand	Shimano
Groupset	Shimano Altus
Cassette Type	9 Speed
Fork Brand	Suntour
Chainset Type	Single
Brake Type	Hydraulic Disc Brake
Front Travel	under 100mm
Battery	Shimano E8010; 504Wh
Range	50-100 km
Bottom Bracket	included
Brakes	Shimano MT-200; 2 piston
Brake Levers	Shimano MT-200
Cassette	Shimano HG400; 11-36 ATC; 9 Speed
Chain	KMC e9S
Crankset	Shimano FC-E5010; 170mm
Derailleur Rear	Shimano Altus M2000
Display	Shimano SC-E5000
Motor/Drive Unit	Shimano E5000; 40Nm
Fork	Suntour NEX-PM-DS; Coil; 63 STR
Frame	eSPRESSO LITE; MAT aluminium
Grips	MERIDA EXPERT TK
Handlebar	MERIDA EXPERT TK; MAT aluminium; 660 WHB; 15 RHB
Hubs	Shimano MT400; 142×12 WHR; 36 SPH; Centerlock
Pedals	VP; VPE-891
Rims	MERIDA COMP TK; 20 IWR; MAT aluminium
Saddle	MERIDA EXPERT TK; V-mount
Seatpost	MERIDA EXPERT; MAT aluminium; 30.9 DSP; 15 SSB
Stem	MERIDA EXPERT CC; MAT aluminium; 31.8 DSH; 17 ASD
Spokes	Black stainless
Shifters	Shimano Altus rapidfire
Tyres	Continental RIDE TOUR; 622×42″; reflective stripe
Speeds	1 x 9
Sizing SKUs	XS: MEEB2164431, SM: MEEB2164442, MD: MEEB2164453, LG: MEEB2164464, XL: MEEB2164475
Motor Brand	Shimano
Motor Model	Steps E5000
Motor Torque (Nm)	40 Nm
Motor Torque (Nm)	40-49 Nm
Battery Brand	Shimano
Battery Model	STEPS E8010
Battery Size (Watt-Hours)	504 W-h
Battery Size	500-549 W-h
Charge Time (Hours)	5 hrs
Assist Modes	4 Modes
